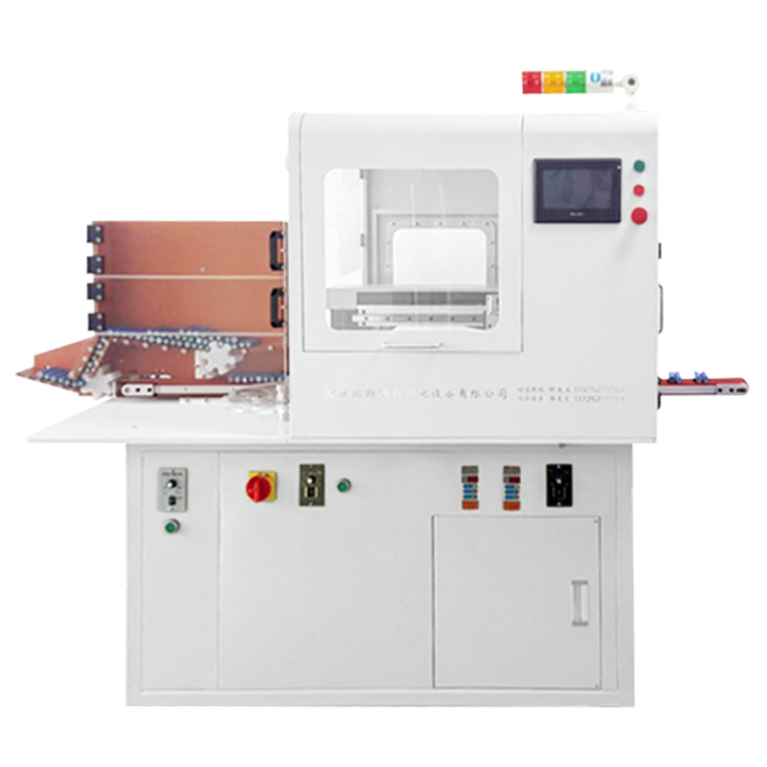

BT-280Y/290 mobile power bank Fully automatic spot welding machine
2025-11-20 11:54:45
Product features：
The nickel belt adopts a disc shaped nickel bel to reduce waste
The equipment debugging is simple,easy to learn and understand, generally set 3 parameters when changing the model
Adopt hopper to feed material,500PCS cells can be put in one time
Opional voltage intermal resistance test function
一、Main function
Cylindnicalcelaeatomaicaly wekded,can be combined nto palelor seres
Using dso shaped coled nckel sheets,atomaticaly cut and weked according tothe setlength
二、Product charactersics
The nickel belt adopts a disc shaped nickel bel to reduce waste
The equipment debugging is simple,easy to learn and understand, generally set 3 parameters when changing the model
Adopt hopper to feed material,500PCS cells can be put in one time
Opional voltage intermal resistance test function
三、Product parameters
Power | AC220V 50/60HZ 5KW | Maximum stroke | Take 18650 batteries as an example:10pcs Take 32700 batteries as an example:8pcs | ||
| Coke gas pressure | 0.4-0.8Mpa,Air source must be used when there is a fiter device to ensure that the flow of water-free impurities. | ||||
Suitable for nickel sheet thickness | 0.08MM-0.15MM | ||||
Standard spot welding power | 2 SetBT-550D-60 welding power | ||||
Welding output power | Max 16KA | Suitable nickel sheet Max width | 4 - 1 0 M M | ||
Control device | PLC Touch screen control | Suitablenickel sheet Max outer dameter | 300MM | ||
| Run power | 750W Servo electic | Suitable for spot welding pins | ) Imported diameter 1.5*100MM(spot welding) | ||
Adaptive range | 14430/14500/18500/18650/21700 26650/26700/32050/32700 | Equipment dimensions | L1720*W700^H1360MM | ||
Droductivit | About 2200PCS cellshour | Weight | 220KG | ||
